mosaic-G5 GNSS Boards & Evaluation Kits

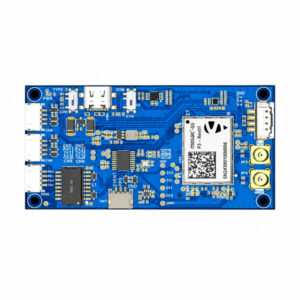

  • Eview G5P3H EVK mosaic-G5 Evaluation Board with Septentrio mosaic-G5 P3/P3H

    G5P3H EVK mosaic-G5 Evaluation Board — Septentrio mosaic-G5 P3/P3H

    Evaluation board for prototyping and integrating mosaic-G5 RTK

    • Eview evaluation board built around the Septentrio mosaic-G5 P3 or P3H
    • Centimetre-level RTK: 0.6 cm + 0.5 ppm horizontal
    • P3H version: dual-antenna heading 0.15° (1 m baseline)
    • USB Type-C with two virtual serial ports for direct PC setup
    • 2 × TTL UART, Ethernet, PPS output and event input
    • Kit with RJ45 adapter, 2 × TTL-to-RS232 and 2 × MCX-to-TNC cables
    • Compact 80 × 41 mm board, 5 V supply
    Read moreDone

The Eview mosaic-G5 evaluation kit lets you test the Septentrio mosaic-G5 P3 and P3H modules (quad-band RTK, heading on P3H, AIM+) on your bench before you design the module into your own board.

  • G5P3H EVK: mosaic-G5 P3 / P3H evaluation board.

Learn more about the module on our Septentrio mosaic-G5 page.

How do I get datasheets or a quote? Email sales@gnss-solutions.com with your application and quantity.
